Chiswick Library
Solar PV
Location | 1 Duke’s Ave, Chiswick, London W4 2AB
Areas | Flat Tiled Roof
Manufacturers | JA Solar and Solaredge
System Size (kW) | 12.54
System Output (KWh) | 10,450
Annual C02 Savings (kg) | 2

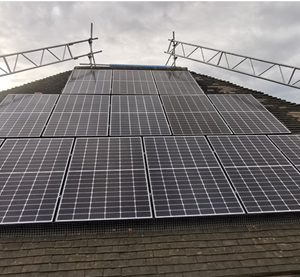

Revolution completed 12.54kWp of Solar PV at Chiswick Library on behalf of Hounslow Council under the PSDS scheme. Despite Chiswick library being a grade II listed building, we received approval to install 32x modules across two arrays. Due to the age of the roof, we encountered many broken tiles when completing the installation, however, Revolution was able to source, fit and repair the broken tiles within the same day.
This system will generate an estimated 9,880kWh per annual year.

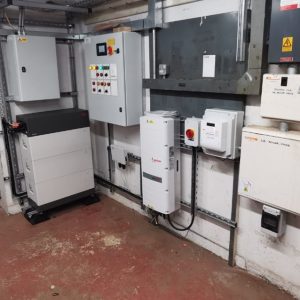

Revolution installed this system using SolarEdge optimisers and SE8K-RWS inverter with 1x BYD premium LVS 12kW battery storage system allowing the site to consume all the production generated. All the SolarEdge equipment is being monitored remotely by Revolution as part of our standard 2 year warranty service so if any faults should occur Revolution will action accordingly.

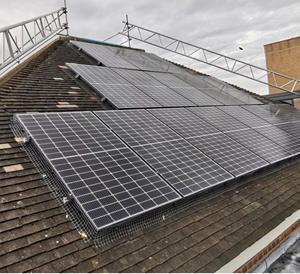

With all pitched tiled roofs, Revolution completed the installation with bird netting to stop nesting.
.
